OM5156M - Low Voltage Dual Frequency Synthesizer for Radio Telephones

OM5156M Description

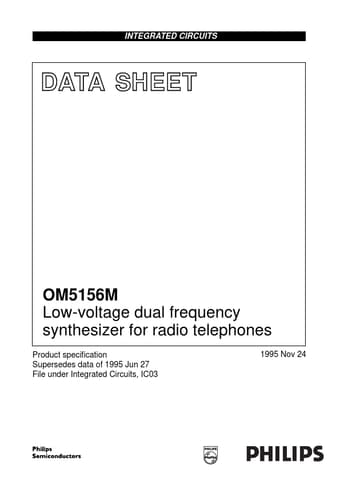

INTEGRATED CIRCUITS DATA SHEET OM5156M Low-voltage dual frequency synthesizer for radio telephones Product speciļ¬cation Supersedes data of 1995 Jun .
The OM5156M BICMOS device integrates prescalers, programmable dividers, and phase comparators to implement two phase-locked loops.

OM5156M Features

* Low current from 3 V supply
* Fully programmable RF divider
* 3-line serial interface bus
* Second synthesizer to control first IF or offset loop frequency
* Independent fully programmable reference dividers for each loop, driven from external crystal oscill

OM5156M Applications

* 2 GHz mobile telephones
