OM7502SC Datasheet - ETC

OM7502SC DUAL POSITIVE AND NEGATIVE FIXED VOLTAGE REGULATORS

This series of products offers a positive and a negative fixed voltage regulator in one hermetically sealed, 5 PIN package whose outline is similar to the industry standard TO-247 package. With heat sinking, they can regulate over 1.5 Amp of output current per device. Standard voltages are + or - 5V.

OM7502SC Features

* Positive And Negative Regulators In One Package Hermetic 5-Pin Metal Package, JEDEC MO-078AA Isolated Case Output Voltages 5V, 12V and 15V; Other Voltages Available Output Voltages Set Internally To ±2.0% Built-In Therma

OM7502SC Datasheet (36.85 KB)

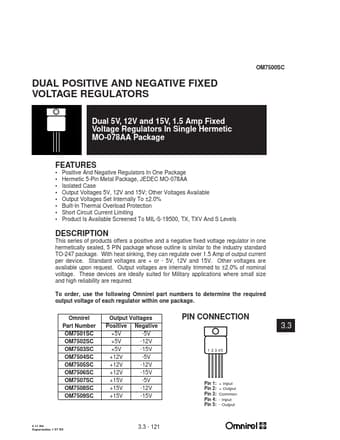

Preview of OM7502SC PDF

Datasheet Details

Part number:

OM7502SC

Manufacturer:

ETC

File Size:

36.85 KB

Description:

Dual positive and negative fixed voltage regulators.
