OM75N05SC, POWER MOSFETS

OM55N10SC OM60N10SC OM75N05SC OM75N06SC OM55N10SA OM75N05SA OM75N06SA LOW VOLTAGE, LOW RDS(on) POWER MOSFETS IN HERMETIC ISOLATED PACKAGE 50V, 60V, An.
This series of hermetic packaged MOSFETs are ideally suited for low voltage applications; battery powered voltage power supplies, motor controls, dc t.

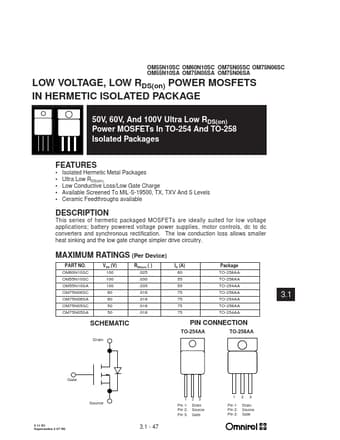

datasheet Preview Page 1 from Datasheet4u.com

OM75N05SC-Omnirel.pdf

OM75N05SC Datasheet Preview — Preview of OM75N05SC PDF

Datasheet Details

Part number:

OM75N05SC

Manufacturer:

Omnirel

File Size:

74.83 KB

Description:

POWER MOSFETS

Features

* Isolated Hermetic Metal Packages
* Ultra Low RDS(on)
* Low Conductive Loss/Low Gate Charge
* Available Screened To MIL-S-19500, TX, TXV And S Levels

Applications

* battery powered voltage power supplies, motor controls, dc to dc converters and synchronous rectification. The low conduction loss allows smaller heat sinking and the low gate change simpler drive circuitry. MAXIMUM RATINGS (Per Device) PART NO. OM60N10SC OM55N10SC OM55N10SA OM75N06SC OM75N06SA O
