OM7500SC

DUAL POSITIVE AND NEGATIVE FIXED VOLTAGE REGULATORS

OM7500SC Datasheet (67.07 KB)

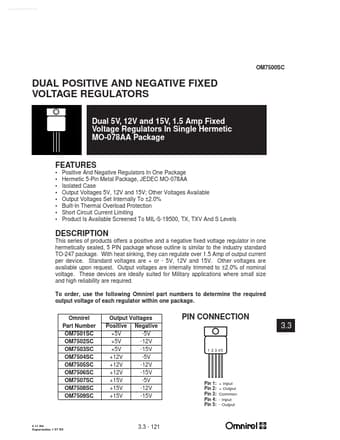

Preview of OM7500SC PDF

Datasheet Details

Part number:

OM7500SC

Manufacturer:

Omnirel

File Size:

67.07 KB

Description:

Dual positive and negative fixed voltage regulators.
www.DataSheet4U.com OM7500SC DUAL POSITIVE AND NEGATIVE FIXED VOLTAGE REGULATORS Dual 5V, 12V and 15V, 1.5 Amp Fixed Voltage Regulators In Single He.

OM7500SC Features

* Positive And Negative Regulators In One Package Hermetic 5-Pin Metal Package, JEDEC MO-078AA Isolated Case Output Voltages 5V, 12V and 15V; Other Voltages Available Output Voltages Set Internally To ±2.0% Built-In Therma

OM7500SC General Description

This series of products offers a positive and a negative fixed voltage regulator in one hermetically sealed, 5 PIN package whose outline is similar to the industry standard TO-247 package. With heat sinking, they can regulate over 1.5 Amp of output current per device. Standard voltages are + or - 5V.
