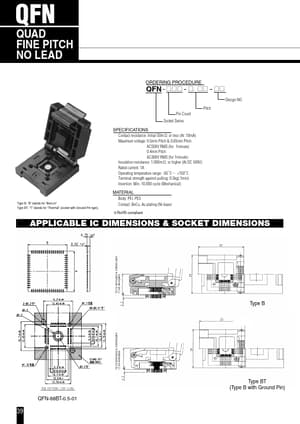

QFN-12BT-0.5-02 NO LEAD B/BT TYPE SOCKET

QFN QUAD FINE PITCH NO LEAD Type B: “B” stands for “Burn-in” Type BT: “T” stands for “Thermal” (socket with Ground Pin type). ORDERING PROCEDURE QFN Pin Count Socket Series Pitch SPECIFICATIONS Contact resistance: Initial 50m or less (At :10mA) Maximum voltage: 0.5mm Pitch & 0.65mm Pitch AC500V RMS (for 1minute) 0.4mm Pitch AC300V RMS (for 1minute) Insulation resistance: 1,000m or higher (At DC 500V) Rated current: 1A Operating temperature range: -65 C +150 C Terminal strength against pulli.
