SC6928

LED Driver IC

SC6928 Features

* CMOS Technology Low Power Consumption Multiple Display Modes Key Scanning 8-Step Dimming Circuitry Serial Interface for Clock, Data Input, Data Output, Strobe Pins Available in 28-Pin, SOP Package APPLICATION Micro-computer Peripheral Device VCR set Combi set BLOCK DIAGRAM Control Serial DI/O CLK

SC6928 General Description

LED Driver IC SC6928 is an LED Controller driven on a 1/7to 1/8 duty factor. Eleven segment output lines, six grid output lines, 1 segment/grid output lines, one display memory, control circuit , key scan circuit are all incorporated into a single chip to build a highly reliable peripheral device .

SC6928 Datasheet (312.98 KB)

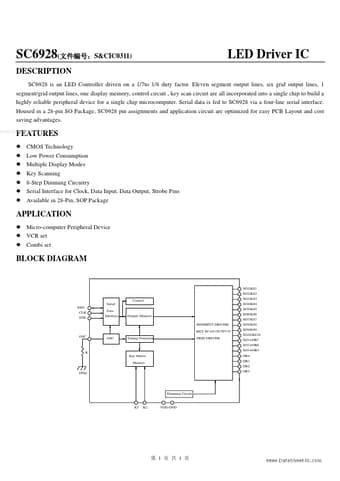

Preview of SC6928 PDF

Datasheet Details

Part number:

SC6928

Manufacturer:

ETC

File Size:

312.98 KB

Description:

Led driver ic.
