SF1002G (SF1001G - SF1008G) 10.0 AMPS. Glass Passivated Super Fast Rectifiers

SF1002G Features

* Low forward voltage drop High current capability High reliability High surge current capability TO-220 Mechanical Data Case: Molded plastic Epoxy: UL 94V-O rate flame retardant Terminals: Leads solderable per MIL-STD202, Method 208 guaranteed Polarity: As marked High temperature soldering guarante

SF1001G_ETC.pdf

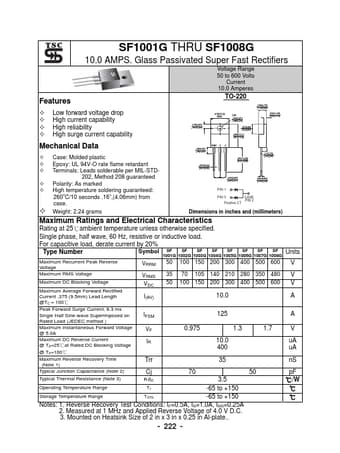

SF1002G Datasheet Preview — This datasheet PDF includes multiple part numbers: SF1002G, SF1001G. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SF1002G, SF1001G

Manufacturer:

ETC

File Size:

94.99 KB

Description:

(sf1001g - sf1008g) 10.0 amps. glass passivated super fast rectifiers.

Note:

This datasheet PDF includes multiple part numbers: SF1002G, SF1001G.
Please refer to the document for exact specifications by model.
