SF1003 SAW Filter

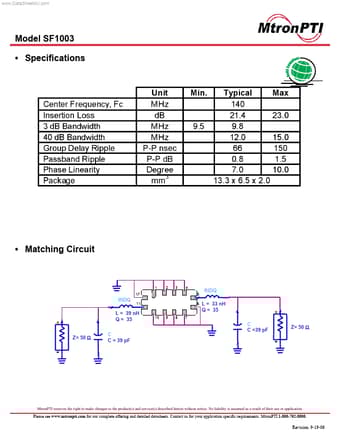

www.DataSheet4U.com Model SF1003 Specifications Item Center Frequency, fc Insertion Loss 1) 3dB Bandwidth 40dB Bandwidth Passband Ripple 2) Group Delay Ripple 2) Phase Linearity 2) Package Notes FSMS0140B1 Specifications Unit MHz dB MHz MHz P-P dB P-P nsec Degree mm3 9.5 Min Typical 140.0 21.4 9.8 12.0 0.8 66 7.0 13.3x6.5x2.0 15.0 1.5 150 10.0 23.0 Max 1) Insertion loss with matching circuit 2) Fc- 4.0MHz ~ Fc +4.0MHz Matching Circuit Matching Circuit.

SF1003 Datasheet (314.90 KB)

SF1003 Datasheet Preview — Preview of SF1003 PDF

Datasheet Details

Part number:

SF1003

Manufacturer:

MTRONPTI

File Size:

314.90 KB

Description:

Saw filter.
