SFH9201 Datasheet - ETC

SFH9201 Reflective Interrupter

Reflexlichtschranke im SMT-Gehäuse Reflective Interrupter in SMT Package SFH 9201 Wesentliche Merkmale Optimaler Arbeitsabstand 1 mm bis 5 mm IR-GaAs-Lumineszenzdiode: Sender Si-NPN-Fototransistor: Empfänger Tageslichtsperrfilter Hoher Kollektor-Emitter-Strom typ. 0.7 mA Geringe Sättigungsspannung Sender und Empfänger galvanisch getrennt Anwendungen Positionsmelder Endabschalter Drehzah.

SFH9201 Features

* Optimal operating distance 1 mm to 5 mm

* IR-GaAs-emitter

* Silicon NPN phototransistor detector

* Daylight filter against undesired light effects

* High collector-emitter current typ. 0.7 mA

* Low saturation voltage

* Emitter and detector el

SFH9201 Datasheet (71.27 KB)

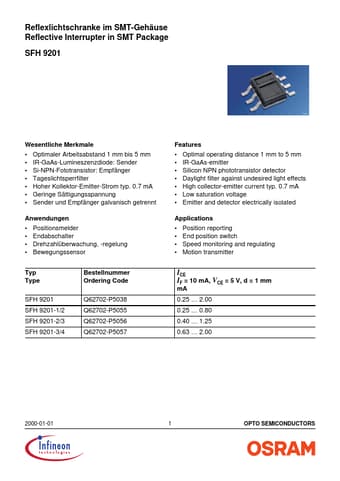

SFH9201 Datasheet Preview — Preview of SFH9201 PDF

Datasheet Details

Part number:

SFH9201

Manufacturer:

ETC

File Size:

71.27 KB

Description:

Reflective interrupter.
