SFH-0412A, SFH-1415A Datasheet - Sony

SFH-0412A - (SFH-xxxxA) SC Protector

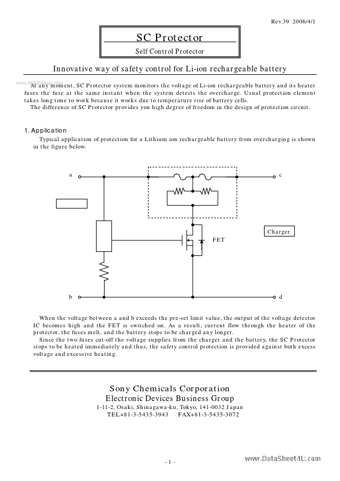

Rev.39 2006/4/1 SC Protector Self Control Protector Innovative way of safety control for Li-ion rechargeable battery www.datasheet4u.com At any moment, SC Protector system monitors the voltage of Li-ion rechargeable battery and its heater fuses the fuse at the same instant when the system detects the overcharge. Usual protection element takes long time to work because it works due to temperature rise of battery cells. The difference of SC Protector provides you high degree of freedom in the d.

SFH-0412A Features

* of the heater operation>

* Fuses like flow into the middle electrode Both two side (or one side) is fused 7.2. Current operation In the case of over-current operation, basically, “only one position of the fuse is cut” because it is the same operation mode as the conventional electric curr
