SFH109R0
SCHOTT
1.02 MB
Sefuse thermal links.
8

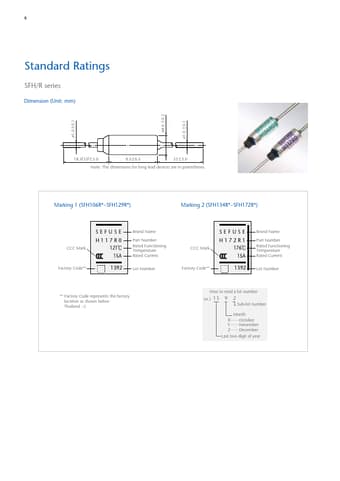

Standard Ratings
SFH/R series
Dimension (Unit: mm)
ø1.0 ±0.1 ø4.0 ±0.2
ø1.0 ±0.1
18.5(33)±3.0
8.5±0.5
33±3.0
Note: The dimensions for long lead.
