SFH1690BT, SFH1690AT - GaAs infrared emitting diode emitter

SFH1690BT Description

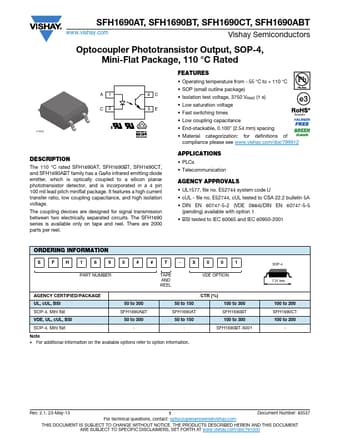

SFH1690AT, SFH1690BT, SFH1690CT, SFH1690ABT www.vishay.com Vishay Semiconductors Optocoupler Phototransistor Output, SOP-4, Mini-Flat Package, 110 .
The 110 °C rated SFH1690AT, SFH1690BT, SFH1690CT, and SFH1690ABT family has a GaAs infrared emitting diode emitter, which is optically coupled to a si.

SFH1690BT Features

* a high current transfer ratio, low coupling capacitance, and high isolation voltage. The coupling devices are designed for signal transmission between two electrically separated circuits. The SFH1690 series is available only on tape and reel. There are 2000 parts per reel. FEATURES
* Opera

SFH1690BT Applications

* PLCs
* Telecommunication AGENCY APPROVALS
* UL1577, file no. E52744 system code U
* cUL - file no. E52744, cUL tested to CSA 22.2 bulletin 5A
* DIN EN 60747-5-2 (VDE 0884)/DIN EN 60747-5-5 (pending) available with option 1
* BSI tested to IEC 60065

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SFH1690BT, SFH1690AT. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SFH1690BT, SFH1690AT
Manufacturer
Vishay ↗
File Size
129.73 KB
Datasheet
SFH1690AT-Vishay.pdf
Description
GaAs infrared emitting diode emitter
Note
This datasheet PDF includes multiple part numbers: SFH1690BT, SFH1690AT.
Please refer to the document for exact specifications by model.
