SFH1617A - Optocoupler

SFH1617A Description

www.vishay.com SFH1617A Vishay Semiconductors Optocoupler, Phototransistor Output, High Reliability, 5000 VRMS, 110 °C Rated A1 C2 4C 3E 17918-20.
The 110 °C rated SFH1617A (DIP) feature a high current transfer ratio, low coupling capacitance and high isolation voltage.

SFH1617A Features

* Operating temperature from - 55 °C to + 110 °C
* Good CTR linearity depending on forward current
* Isolation test voltage, 5000 VRMS
* High collector emitter voltage, VCEO = 70 V
* Low saturation voltage
* Fast switching times
* Low CTR degra

SFH1617A Applications

* AC adapter
* SMPS
* PLC
* Factory automation
* Game consoles AGENCY APPROVALS
* UL1577, file no. E52744
* cUL tested to CSA 22.2 bulletin 5A
* DIN EN 60747-5-2 (VDE 0884)/DIN EN 60747-5-5 (pending) available with option 1
* BS

📥 Download Datasheet

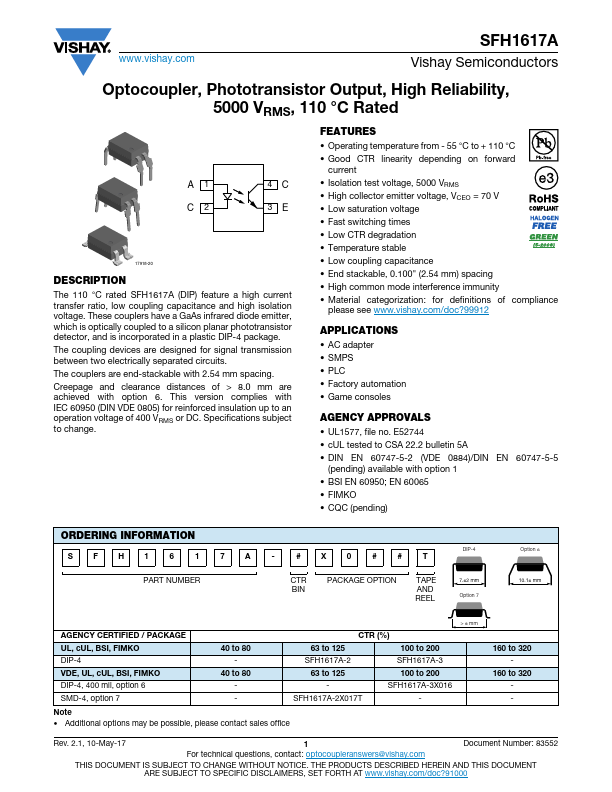

Preview of SFH1617A PDF

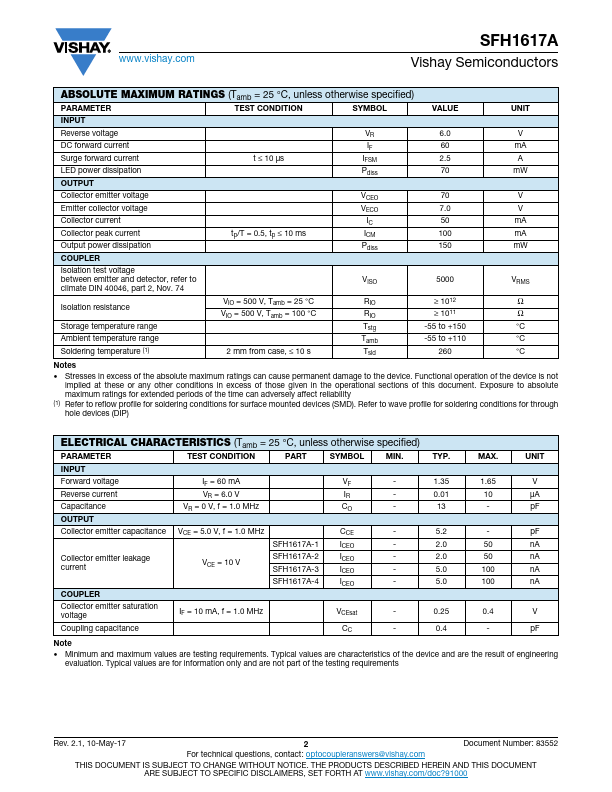

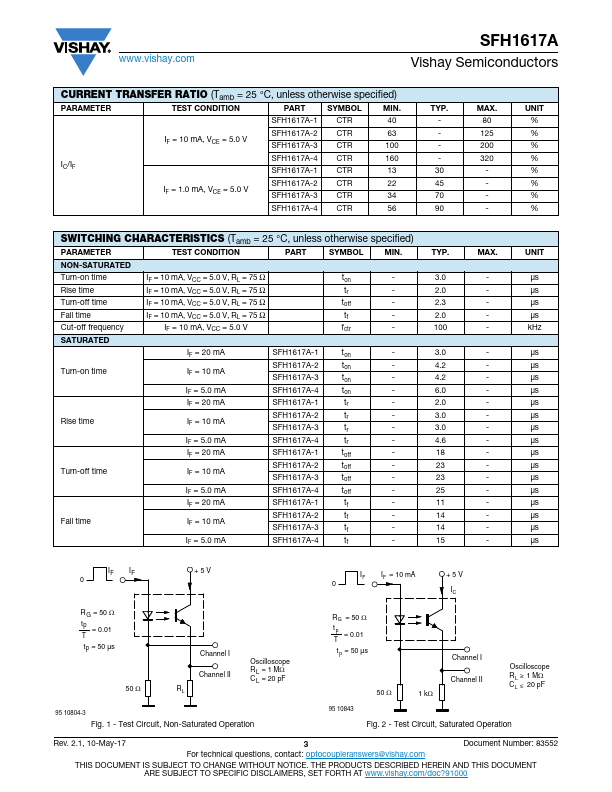

datasheet Preview Page 2 datasheet Preview Page 3
