SFH-1412A, SFH-1212A Datasheet - Sony

SFH-1412A SFH-1412A

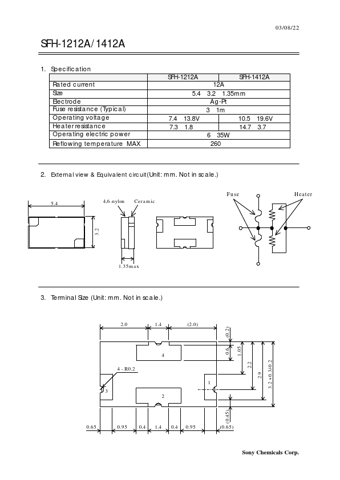

SFH-1212A/1412A 1. Specification Rated current Size Electrode Fuse resistance (Typical) Operating voltage Heater resistance Operating electric power Reflowing temperature MAX 03/08/22 SFH-1212A SFH-1412A 12A 5.4 3.2 1.35mm Ag-Pt 3 1m 7.4 13.8V 10.5 19.6V 7.3 1.8 14.7 3.7 6 35W 260 2. External view & Equivalent circuit(Unit: mm. Not in scale.) 5.4 4,6-nylon Ceramic Fuse Heater 3.2 1.35max 3. Terminal Size (Unit: mm. Not in scale.) 2.0 1.4 (2.0) (0.2) 0.6 1.05 2.2 2.9 3.2 .

SFH-1212A-Sony.pdf

This datasheet PDF includes multiple part numbers: SFH-1412A, SFH-1212A. Please refer to the document for exact specifications by model.
SFH-1412A Datasheet Preview Page 2 SFH-1412A Datasheet Preview Page 3

Datasheet Details

Part number:

SFH-1412A, SFH-1212A

Manufacturer:

Sony

File Size:

23.43 KB

Description:

Sfh-1412a.

Note:

This datasheet PDF includes multiple part numbers: SFH-1412A, SFH-1212A.
Please refer to the document for exact specifications by model.
