SFH900 - SFH900-A LOW-COST MINIATURE REFLEX OPTICAL SENSOR

Siemens Semiconductor Group

📥 Download Datasheet

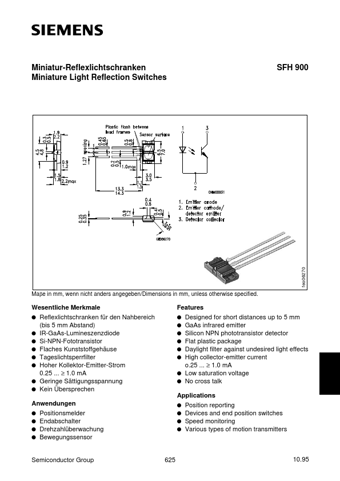

SFH900 Datasheet Preview — Preview of SFH900 PDF

Datasheet Details

Part number	SFH900
Manufacturer	Siemens Semiconductor Group
File Size	456.15 KB
Description	SFH900-A LOW-COST MINIATURE REFLEX OPTICAL SENSOR
Datasheet	SFH900_SiemensSemiconductorGroup.pdf

SFH900 Product details

Description

Sender (IR-GaAs-Lumineszenzdiode) Emitter (GaAs infrared diode) Sperrspannung Reverse voltage Vorwärtsgleichstrom Forward current Vorwärtsstoβstrom, tp ≤ 10 µs Surge current Verlustleistung Power dissipation Empfänger (Si-Fototransistor) Detector (silicon phototransistor) Kollektor-Emitter-Sperrspannung Collector-emitter voltage Emitter-Kollektor-Sperrspannung Emitter-collector voltage Kollektorstrom Collector current Verlustleistung Total power dissipation Semiconductor Group Symbol Symbol VR

Features

q Designed for short distances up to 5 mm q GaAs infrared emitter q Silicon NPN phototransistor detector q Flat plastic package q Daylight filter against undesired light effects q High collector-emitter current o.25 ≥ 1.0 mA q Low saturation voltage q No cross talk.
