SI-8120JF, SI-8000JF - Separate Excitation Step-down Switching Mode

SI-8120JF Description

1-1-3 DC/DC Converter ICs SI-8000JF Series Full-Mold, Separate Excitation Step-down Switching Mode *.

SI-8120JF Features

* Compact full-mold package (equivalent to TO220)
* Output current: 1.5A
* High efficiency: 67 to 88%
* Requires only 4 discrete components
* Internally-adjusted phase correction and output voltage
* Capable of downsize a choke-coil due to IC's high sw

SI-8120JF Applications

* Power supplies for telecommunication equipment
* Onboard local power supplies
* Recommended Operating Conditions Parameter DC Input Voltage Range Output Current Range Operating Junction Temperature Range Symbol VIN1 VIN2 IO Tjop SI-8015JF
* VO+2 to 40 VO+3 to 40 Ratings

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SI-8120JF, SI-8000JF. Please refer to the document for exact specifications by model.

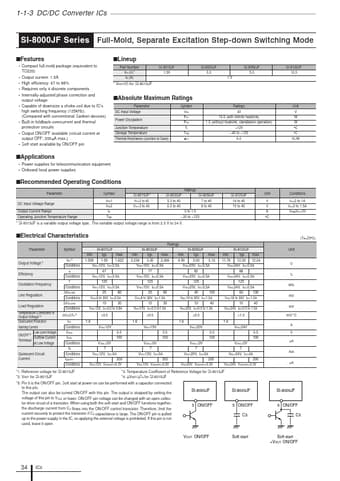

datasheet Preview Page 2

Datasheet Details

Part number
SI-8120JF, SI-8000JF
Manufacturer
ETC
File Size
83.58 KB
Datasheet
SI-8000JF-ETC.pdf
Description
Separate Excitation Step-down Switching Mode
Note
This datasheet PDF includes multiple part numbers: SI-8120JF, SI-8000JF.
Please refer to the document for exact specifications by model.
