SI-8120TM, SI-8000TM, DC/DC Step-Down Converter

DC/DC Step-Down Converter IC SI-8000TM Series September 2005 *General .
SI-8000TM series has 300kHz oscillation frequency, so it contributes miniaturization of a chalk coil.

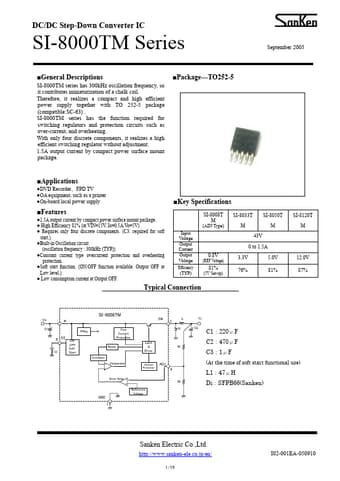

datasheet Preview Page 1 from Datasheet4u.com

SI-8000TM-Sanken.pdf

SI-8120TM Datasheet Preview — This datasheet PDF includes multiple part numbers: SI-8120TM, SI-8000TM. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SI-8120TM, SI-8000TM

Manufacturer:

Sanken ↗

File Size:

521.55 KB

Description:

DC/DC Step-Down Converter

Note:

This datasheet PDF includes multiple part numbers: SI-8120TM, SI-8000TM.
Please refer to the document for exact specifications by model.

Features

* 1.5A output current by compact power surface mount package.
* High Efficiency 81% (at VIN=15V, Io=0.5A,Vo=5V)
* Requires only four discrete components. (C3: required for soft start. )
* Built-in Oscillation circuit (oscillation frequency : 300kHz (TYP))
* Constant current type over

Applications

* DVD Recorder、FPD TV
* OA equipment, such as a printer
* On-board local power supply
