SMC0100S, SMC0608S Datasheet - ETC

SMC0100S (SMC0100S / SMC0608S) alarm sound application CMOS IC

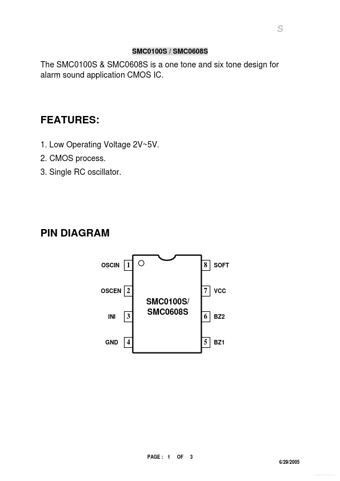

Symbol Description OSCIN Oscillator pin OSCEN Oscillator pin An internal pull-up resistor. Might disable INI BZ1,BZ2 when connected to GND. GND Ground BZ1 Audio output BZ2 Audio output VCC Power SOFT Open = Tone Vcc = Tone with 2 s soft chirp PIN 1 2 3 4 5 6 7 8 I/P,O/P O/P I/P I/P O/P O/P I/P E.

SMC0608S_ETC.pdf

This datasheet PDF includes multiple part numbers: SMC0100S, SMC0608S. Please refer to the document for exact specifications by model.
SMC0100S Datasheet Preview Page 2 SMC0100S Datasheet Preview Page 3

Datasheet Details

Part number:

SMC0100S, SMC0608S

Manufacturer:

ETC

File Size:

56.56 KB

Description:

(smc0100s / smc0608s) alarm sound application cmos ic.

Note:

This datasheet PDF includes multiple part numbers: SMC0100S, SMC0608S.
Please refer to the document for exact specifications by model.
