SMC05

2-Line Bi-directional TVS Diode Array

SMC05 Features

* Ultra low leakage: nA level

* Operating voltage: 5V

* Low clamping voltage

* Complies with following standards:

* IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV

* IEC61000-4-4 (EFT) 40A (5/50ns)

* IEC61000-4-5 (Lightning) 5A

SMC05 Datasheet (123.61 KB)

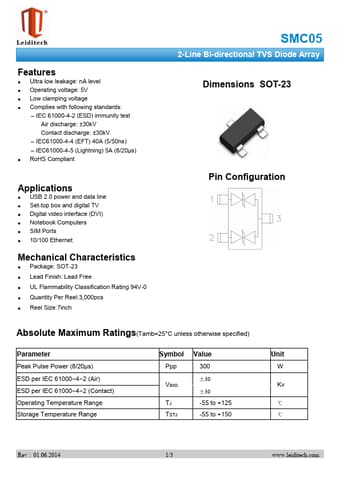

Preview of SMC05 PDF

Datasheet Details

Part number:

SMC05

Manufacturer:

Leiditech

File Size:

123.61 KB

Description:

2-line bi-directional tvs diode array.
