SMC0608S

(SMC0100S / SMC0608S) alarm sound application CMOS IC

SMC0608S Features

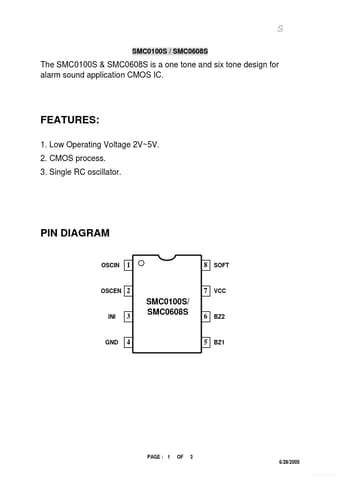

* 1. Low Operating Voltage 2V~5V. 2. CMOS process. 3. Single RC oscillator. PIN DIAGRAM OSCIN 1 8 SOFT OSCEN 2 7 VCC INI 3 SMC0100S/ SMC0608S 6 BZ2 GND 4 5 BZ1 PAGE : 1 OF 3 6/29/2005 ! Free Datasheet http://www.datasheet4u.com/ S PIN OUT AND DESCRIPTION Symbol Description OSCIN O

SMC0608S General Description

Symbol Description OSCIN Oscillator pin OSCEN Oscillator pin An internal pull-up resistor. Might disable INI BZ1,BZ2 when connected to GND. GND Ground BZ1 Audio output BZ2 Audio output VCC Power SOFT Open = Tone Vcc = Tone with 2 s soft chirp PIN 1 2 3 4 5 6 7 8 I/P,O/P O/P I/P I/P O/P O/P I/P E.

SMC0608S Datasheet (56.56 KB)

Preview of SMC0608S PDF

Datasheet Details

Part number:

SMC0608S

Manufacturer:

ETC

File Size:

56.56 KB

Description:

(smc0100s / smc0608s) alarm sound application cmos ic.
