STK795-513A Datasheet - ETC

STK795-513A PDP Mask Module IC

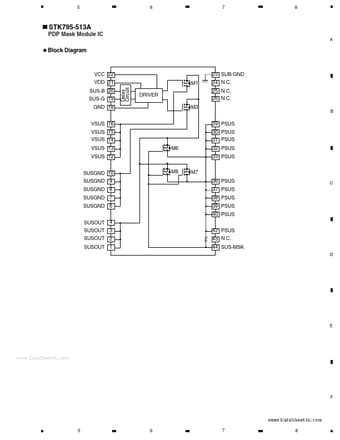

5 6 7 8 STK795-513A (50 Y DRIVE ASSY: IC2303, IC2307) PDP Mask Module IC A Block Diagram VCC 22 VDD 21 SUS-B 20 SUS-G 19 GND 18 VSUS 16 VSUS 15 VSUS 14 VSUS 13 VSUS 12 SUSGND 10 SUSGND 9 SUSGND 8 SUSGND 7 SUSGND 6 SUSOUT 4 SUSOUT 3 SUSOUT 2 SUSOUT 1 M8 M7 M6 Delay Circuit DRIVER M3 M1 23 SUB-GND 24 N.C. 25 N.C. 26 N.C. B 29 PSUS 30 PSUS 31 PSUS 32 PSUS 33 PSUS 36 PSUS 37 PSUS 38 PSUS 39 PSUS 40 PSUS 42 PSUS 43 N.C. 44 SUS-MSK C D E www.DataSheet4U.com F PDP-5050SX 5 6 7 8 165 .

STK795-513A Datasheet (47.03 KB)

STK795-513A Datasheet Preview — Preview of STK795-513A PDF

Datasheet Details

Part number:

STK795-513A

Manufacturer:

ETC

File Size:

47.03 KB

Description:

Pdp mask module ic.
