STK7000 Datasheet, Mosfet, AUK

STK7000 Features

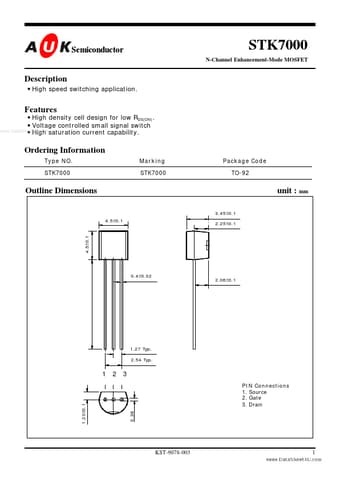

• Mosfet Ordering Information Type NO. STK7000 Marking STK7000 Package Code TO-92 Outline Dimensions 3.45±0.1 4.5±0.1 4.5±0.1 2.25±0.1 unit : mm 0.4±0.02 2.06±0.1 1.27 Typ. 2.54 Typ. 1 2

PDF File Details

Part number:

STK7000

Manufacturer:

AUK

File Size:

120.97kb

Download:

📄 Datasheet

Description:

N-channel enhancement-mode mosfet.

High speed switching application.

High density cell design for low RDS(ON).

Voltage controlled small s
