STK7002 Datasheet, Mosfet, AUK

STK7002 Features

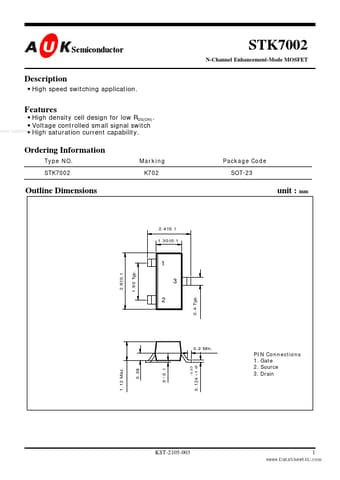

• Mosfet Ordering Information Type NO. STK7002 Marking K702 Package Code SOT-23 Outline Dimensions unit : mm 2.4±0.1 1.30±0.1 1 1.90 Typ. 2.9±0.1 3 0.4 Typ. 0.2 Min. 2 1.12 Max. 0~0.1

PDF File Details

Part number:

STK7002

Manufacturer:

AUK

File Size:

117.69kb

Download:

📄 Datasheet

Description:

N-channel enhancement-mode mosfet.

High speed switching application.

High density cell design for low RDS(ON).

Voltage controlled small s
