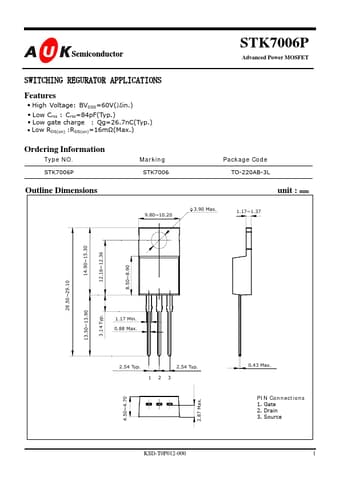

STK7006P - Advanced Power MOSFET Semiconductor

AUK

Datasheet Details

High Voltage: BVDSS=60V(Min. ).
Low Crss : Crss=84pF(Typ. ).
Low gate charge : Qg=26.7nC(Typ. ).
Low RDS(on) :RDS(on)=16mΩ(Max. ) Ordering Information Type NO. STK7006P Marking STK7006 Outline Dimensions 9.80~10.20 STK7006P Advanced Power MOSFET Package Code TO-220AB-3L unit : mm Φ3.90 Max. 1.17~1.37 14.90~15.30 12.16~12.36 8.50~8.90 28.50~29.10 13.50~13.90 3.14 Typ. 1.17 Min. 0.88 Max. 2.54 Typ. 2.54 Typ. 123 4.50~4.70 KSD-T0P012-000 2.87 Max.
