V842ME02 VOLTAGE CONTROLLED OSCILLATOR

V842ME02 Description

V842ME02 9939 Via Pasar * San Diego, CA 92126 TEL (619) 621-2700 FAX (619) 621-2722 VOLTAGE CONTROLLED OSCILLATOR Rev A1 PHASE NOISE (1 Hz .

V842ME02 Features

* Frequency Range: 3110 - 3320 MHz
* Tuning Voltage: 2-10 Vdc

V842ME02 Applications

* Direct Broadcast
* Satellite Up/Down Conversion
* Microwave Links PERFORMANCE SPECIFICATIONS Oscillation Frequency Range Phase Noise @ 10 kHz offset (1 Hz BW, typ. ) Harmonic Suppression (2nd, typ. ) Tuning Voltage Tuning Sensitivity (avg. ) Power Output Load Impedance Input C

📥 Download Datasheet

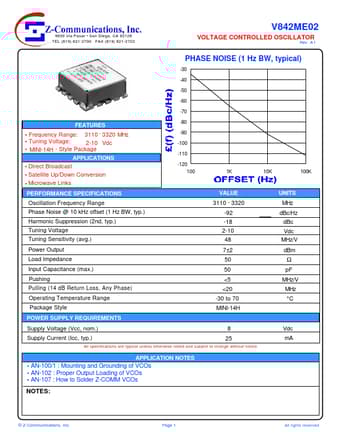

V842ME02 Datasheet Preview — Preview of V842ME02 PDF

Datasheet Details

Part number: V842ME02
Manufacturer: ETC
File Size: 158.70 KB
Datasheet: V842ME02_ETC.pdf
Description: VOLTAGE CONTROLLED OSCILLATOR
