V842ME05, V842ME05_Z, OSCILLATOR

www.DataSheet4U.com 9939 Via Pasar * San Diego, CA 92126 TEL (858) 621-2700 FAX (858) 621-2722 V842ME05 VOLTAGE CONTROLLED OSCILLATOR Rev B2 .

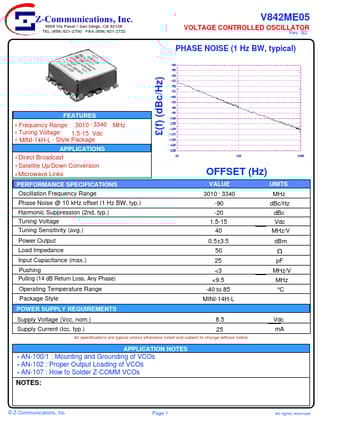

datasheet Preview Page 1 from Datasheet4u.com

V842ME05_Z-Communications.pdf

V842ME05 Datasheet Preview — This datasheet PDF includes multiple part numbers: V842ME05, V842ME05_Z. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

V842ME05, V842ME05_Z

Manufacturer:

Z-Communications

File Size:

122.35 KB

Description:

OSCILLATOR

Note:

This datasheet PDF includes multiple part numbers: V842ME05, V842ME05_Z.
Please refer to the document for exact specifications by model.

Features

* Frequency Range: 3010 - 3340 MHz
* Tuning Voltage: 1.5-15 Vdc

Applications

* Direct Broadcast
* Satellite Up/Down Conversion
* Microwave Links PERFORMANCE SPECIFICATIONS Oscillation Frequency Range Phase Noise @ 10 kHz offset (1 Hz BW, typ. ) Harmonic Suppression (2nd, typ. ) Tuning Voltage Tuning Sensitivity (avg. ) Power Output Load Impedance Input C
