V844ME01

OSCILLATOR

V844ME01 Datasheet (187.62 KB)

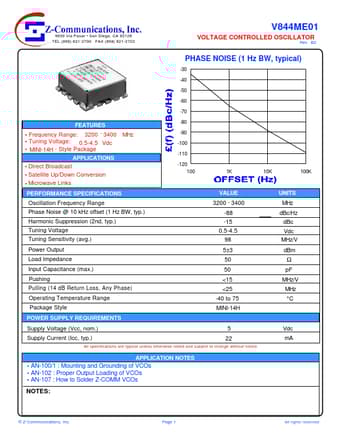

Preview of V844ME01 PDF Datasheet

Datasheet Details

Part number:

V844ME01

Manufacturer:

Z-Communications

File Size:

187.62 KB

Description:

Oscillator

V844ME01 Features

* Frequency Range: 3200 - 3400

* Tuning Voltage: 0.5-4.5 Vdc

* MINI-14H - Style Package APPLICATIONS

* Direct Broadcast

* Satellite Up/Down Conversion

* Microwave Links PERFORMANCE SPECIFICATIONS Oscillation Frequency Range -80 MHz -90 -100 -110 -12
