V844ME03-LF

OSCILLATOR

V844ME03-LF Datasheet (96.22 KB)

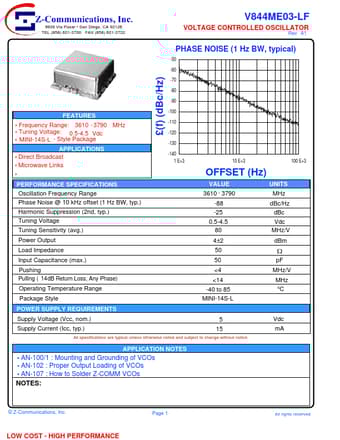

Preview of V844ME03-LF PDF Datasheet

Datasheet Details

Part number:

V844ME03-LF

Manufacturer:

Z-Communications

File Size:

96.22 KB

Description:

Oscillator

V844ME03-LF Features

* Frequency Range: 3610 - 3790 MHz

* Tuning Voltage: 0.5-4.5 Vdc

* MINI-14S-L - Style Package APPLICATIONS

* Direct Broadcast

* Microwave Links

* PERFORMANCE SPECIFICATIONS Oscillation Frequency Range Phase Noise @ 10 kHz offset (1 Hz BW, typ.) Harmoni
