ZTB972E Datasheet - EUROQUARTZ limited

ZTB972E CERAMIC RESONATORS

EURO QUARTZ www.DataSheet4U.com CERAMIC RESONATORS ZTB SERIES ZTB SERIES 700kHz to 999kHz Test Circuit ZTB Series 700kHz to 999kHz 2.2 5.0 Vdd 1/6 CD 4069UBE x 2 RF 6.0 To Frequency Counter ZTB 2.5 3.5 C1 C2 Vdd: RF: +5 Volts 1M Ohm Outline and Dimensions Electrical characteristics Part Number ZTB -J Frequency Range (kHz) 700 to 999 Frequency Accuracy at 25°C ±0.5% Temperature Stability -20° to +80°C ±0.3% Ageing Stability 10 years ±0.5% Resonance Resistance (W) max.

ZTB972E Datasheet (72.71 KB)

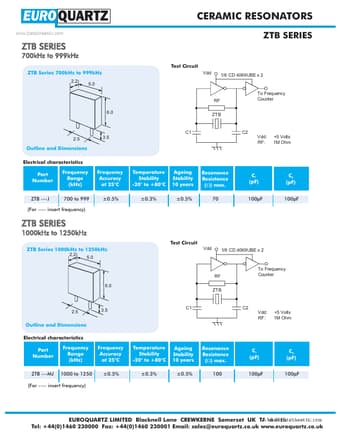

Preview of ZTB972E PDF

Datasheet Details

Part number:

ZTB972E

Manufacturer:

EUROQUARTZ limited

File Size:

72.71 KB

Description:

Ceramic resonators.
