ZTB976E - CERAMIC RESONATORS

This page provides the datasheet information for the ZTB976E, a member of the ZTB961E CERAMIC RESONATORS family.

📥 Download Datasheet

Datasheet preview – ZTB976E

Datasheet Details

Part number ZTB976E
Manufacturer EUROQUARTZ limited
File Size 72.71 KB
Description CERAMIC RESONATORS
Datasheet download datasheet ZTB976E Datasheet
Additional preview pages of the ZTB976E datasheet.

📁 Similar Datasheet

  • ZTB912F - Ceramic Resonators (Token)
  • ZTB912F - (ZTBxxx) Ceramic Resonator (TOKEN)
  • ZTB912F101 - Ceramic Resonators (Token)
  • ZTB912F104 - Ceramic Resonators (Token)
  • ZTB999J - Ceramic Resonators (Token)
  • ZTB - ZTB Series KHz-Band Ceramic Resonator (Vanlong Technology)
  • ZTB-A - Low Frequecy (KHz) Ceramic Resonators (Fortiming)
  • ZTB-B - Low Frequecy (KHz) Ceramic Resonators (Fortiming)
  • ZTB-C - Low Frequecy (KHz) Ceramic Resonators (Fortiming)
  • ZTB-D - Low Frequecy (KHz) Ceramic Resonators (Fortiming)
Other Datasheets by EUROQUARTZ limited

Full PDF Text Transcription

Click to expand full text

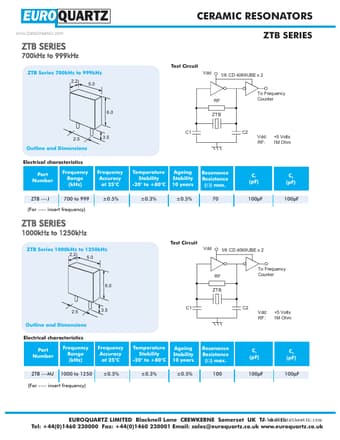

EURO QUARTZ www.DataSheet4U.com CERAMIC RESONATORS ZTB SERIES ZTB SERIES 700kHz to 999kHz Test Circuit ZTB Series 700kHz to 999kHz 2.2 5.0 Vdd 1/6 CD 4069UBE x 2 RF 6.0 To Frequency Counter ZTB 2.5 3.5 C1 C2 Vdd: RF: +5 Volts 1M Ohm Outline and Dimensions Electrical characteristics Part Number ZTB ---J Frequency Range (kHz) 700 to 999 Frequency Accuracy at 25°C ±0.5% Temperature Stability -20° to +80°C ±0.3% Ageing Stability 10 years ±0.5% Resonance Resistance (W) max. 70 C1 (pF) 100pF C2 (pF) 100pF (For ---- insert frequency) ZTB SERIES 1000kHz to 1250kHz Test Circuit ZTB Series 1000kHz to 1250kHz 2.2 5.0 Vdd 1/6 CD 4069UBE x 2 RF 6.0 To Frequency Counter ZTB 2.5 3.
