BA232 Datasheet - Edal Industries

BA232 Silicon Bridge Rectifier

Edal SERIES BA232 www.DataSheet4U.com Silicon Bridge Rectifier ELECTRICAL RATINGS FOR SINGLE PHASE BRIDGE CIRCUIT MAXIMUM ALLOWABLE DC OUTPUT CURRENT: AT 55o C AMBIENT TEMPERATURE AT 100oC AMBIENT TEMPERATURE MAXIMUM SINGLE CYCLE SURGE CURRENT (IFSM) MAXIMUM FULL LOAD FORWARD VOLTAGE DROP @ 25o C (PER SECTION) MAXIMUM PEAK RECURRENT FORWARD CURRENT MAXIMUM REVERSE CURRENT (25o C FULL CYCLE AVERAGE) PER SECTION 2.0 AMPS 1.2 AMPS 60 AMPS 1.2 VOLTS 7.5 AMPS 5 uA PART NUMBER BA232-5 BA232-10 B.

BA232_EdalIndustries.pdf

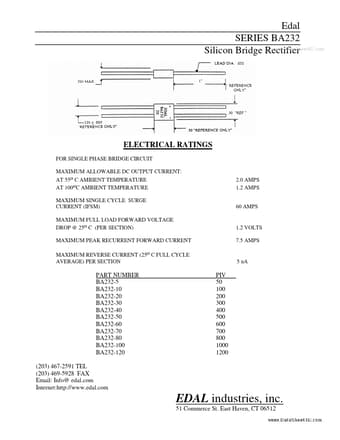

Preview of BA232 PDF

Datasheet Details

Part number:

BA232

Manufacturer:

Edal Industries

File Size:

114.95 KB

Description:

Silicon bridge rectifier.
