EL2450C - 125MHz Single Supply Dual/Quad Op Amps

EL2450C Description

EL2250C, EL2450C EL2250C, EL2450C 125MHz Single Supply Dual/Quad Op Amps .

EL2450C Applications

* Large input common mode range 0V < VCM < VS -1.2V
* Output swings to ground without saturating
* -3dB bandwidth = 125MHz
* ± 0.1dB bandwidth = 30MHz
* Low supply current = 5mA (per amplifier)
* Slew rate = 275V/µs
* Low offset voltage = 4mV m

📥 Download Datasheet

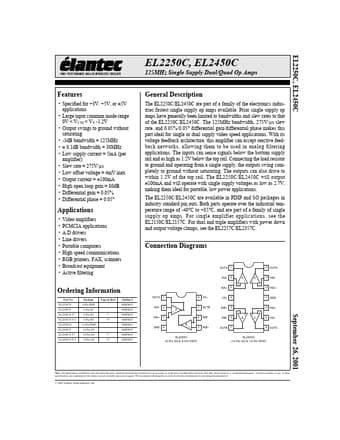

Preview of EL2450C PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
EL2450C
Manufacturer
Elantec Semiconductor
File Size
585.30 KB
Datasheet
EL2450C-ElantecSemiconductor.pdf
Description
125MHz Single Supply Dual/Quad Op Amps
