EL2445C, EL2245C - Dual/Quad Low-Power 100MHz Gain-of-2 Stable Op Amp

EL2445C Description

EL2245C, EL2445C EL2245C, EL2445C Dual/Quad Low-Power 100MHz Gain-of-2 Stable Op Amp .

EL2445C Features

* 100MHz gain-bandwidth at gainof-2
* Gain-of-2 stable
* Low supply current (per amplifier) = 5.2mA at VS = ±15V
* Wide supply range = ±2V to ±18V dual-supply = 2.5V to 36V single-supply
* High slew rate = 275V/µs
* Fast settling = 80ns to 0.1% for a

EL2445C Applications

* Video amplifier
* Single-supply amplifier
* Active filters/integrators
* High-speed sample-and-hold
* High-speed signal processing
* ADC/DAC buffer
* Pulse/RF amplifier
* Pin diode receiver
* Log amplifier
* Photo mul

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: EL2445C, EL2245C. Please refer to the document for exact specifications by model.

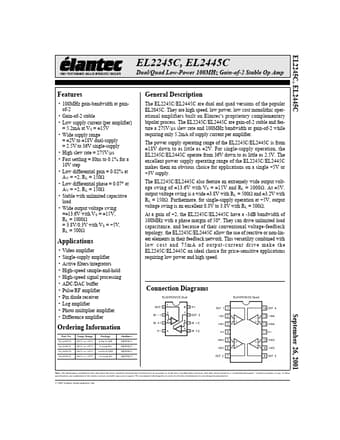

datasheet Preview Page 2 datasheet Preview Page 3
