EL2445

Dual/Quad Low-Power 100MHz Gain-of-2 Stable Op Amp

EL2445 Features

* 100MHz gain-bandwidth

* Gain-of-2 stable

* Low supply current (per amplifier) - 5.2mA at VS = ±15V

* Wide supply range - 2.5V to 36V

* High slew rate - 275V/µs

* Fast-settling - 80ns to 0.1% for a 10V step

* Low differential gain - 0.02% at A

EL2445 General Description

CONDITION TEMP MIN TYP VOS TCVOS IB IOS TCIOS AVOL PSRR CMRR CMIR VOUT ISC Input Offset Voltage VS = ±15V Average Offset Voltage Drift (Note 1) 25°C TMIN, TMAX All 0.5 10.0 Input Bias Current VS = ±15V Input Offset Current VS = ±5V VS = ±15V Average Offset Current Drift VS = ±5V (Not.

EL2445 Datasheet (240.03 KB)

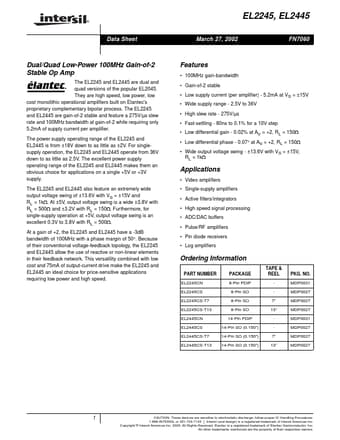

Preview of EL2445 PDF

Datasheet Details

Part number:

EL2445

Manufacturer:

Intersil

File Size:

240.03 KB

Description:

Dual/quad low-power 100mhz gain-of-2 stable op amp.
® Data Sheet EL2245, EL2445 March 27, 2002 FN7060 Dual/Quad Low-Power 100MHz Gain-of-2 Stable Op Amp The EL2245 and EL2445 are dual and quad versi.
