EL2444, EL2244 - Dual/Quad Low-Power 120MHz Unity-Gain Stable Op Amp

EL2444 Description

® Data Sheet EL2244, EL2444 July 14, 2004 FN7059.1 Dual/Quad Low-Power 120MHz Unity-Gain Stable Op Amp The EL2244 and EL2444 are dual and quad ver.

EL2444 Features

* 120MHz gain-bandwidth product
* Unity-gain stable
* Low supply current (per amplifier) - 5.2mA at VS = ±15V
* Wide supply range - 2.5V to 36V
* High slew rate - 325V/µs
* Fast settling - 80ns to 0.1% for a 10V step
* Low differential gain - 0

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: EL2444, EL2244. Please refer to the document for exact specifications by model.

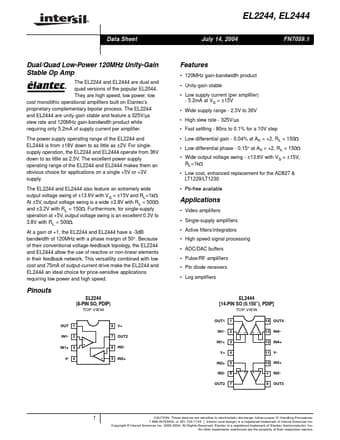

datasheet Preview Page 2 datasheet Preview Page 3
