® T UCT ROD ACEMEN t P E a T L E P e E nt r OL OBS ENDED R pport Ce m/tsc al Su sil.co OMM REC Technic ww.inter NO r Data Sheet w u I L or act o cont -INTERS 8 1-88 EL2002 December 1995, Rev. D FN7021 Low Power, 180MHz Buffer Amplifier The EL2002 is a low cost monolithic, high slew rate, buffer amplifier. Built using the Elantec monolithic Complementary Bipolar process, this patented buffer has a -3dB bandwidth of 180MHz, and delivers 100mA, yet draws only 5mA of supply current. It typically .

EL2002 Features

* 180MHz bandwidth

* 2000V/µs slew rate

* Low bias current, 3µA typical

* 100mA output current

* 5mA supply current

* Short circuit protected

* Low cost

* Stable with capacitive loads

* Wide supply range ±5V to ±15V

* No

EL2002 Datasheet (217.35 KB)

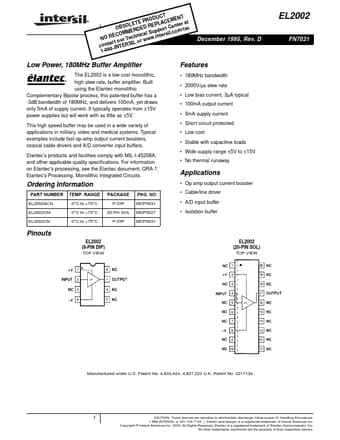

EL2002 Datasheet Preview — Preview of EL2002 PDF
