EL2004C Datasheet, Buffer, Elantec

EL2004C Features

  • Buffer  Slew rate 2500 V ms  Rise time 1 ns  Bandwidth 350 MHz  ELH0033 pin compatible  g5 to g15V operation  100 mA output current  MIL-STD-883B Rev C devices manufactured in U S A Ap

PDF File Details

Part number:

EL2004C

Manufacturer:

Elantec

File Size:

272.37kb

Download:

📄 Datasheet

Description:

350mhz fet buffer. The EL2004 is a very high-speed FET input buffer line driver designed for unity gain applications at both high current (up to 100 mA)

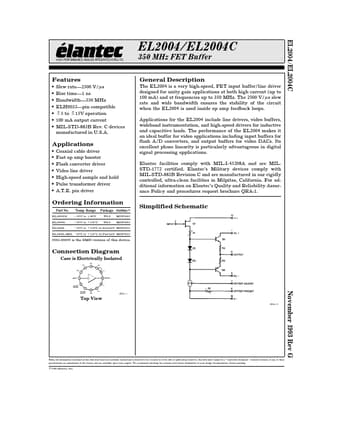

Datasheet Preview: EL2004C 📥 Download PDF (272.37kb)
Page 2 of EL2004C Page 3 of EL2004C

EL2004C Application

  • Applications  Coaxial cable driver  Fast op amp booster  Flash converter driver  Video line driver  High-speed sample and hold  Pulse transfor
