EL2019 - High Voltage Comparator

Product Overview

Intersil

Datasheet Details

Part number	EL2019
Manufacturer	Intersil
File Size	185.48 KB
Description	High Voltage Comparator
Datasheet	EL2019 Datasheet

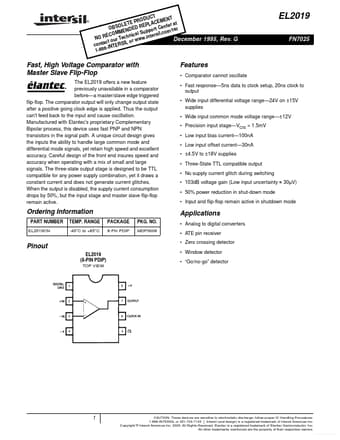

Additional preview pages of the EL2019 datasheet.

Product details

Description

TEMP 25°C TMIN, TMAX 25°C TMIN, TMAX 25°C TMIN, TMAX 25°C 25°C 25°C TMIN, TMAX 75 75 ±12 ±12 30 25°C TMIN, TMAX -0.05 -0.1 0.15 0.4 0.4 90 95 ±13 30 ±100 MIN TYP 1.5 MAX 6 8 ±400 ±600 150 250 UNITS mV mV nA nA nA nA dB dB V V µV/RMS V V Input Offset Voltage VCM = 0V, VO Transition Point Input Bias Current VCM = 0V, Pin 2 or 3 Input Offset Current VCM = 0V Common Mode Rejection Ratio (Note 1) Power Supply Rejection Ratio (Note 2) Common Mode Input Range Input Uncertainty Range Output Voltage Log

Features

Comparator cannot oscillate.
Fast response.
5ns data to clock setup, 20ns clock to output.
Wide input differential voltage range.
24V on ±15V supplies.
Wide input common mode voltage range.
±12V.
Precision input stage.
VOS = 1.5mV.
Low input bias current.
100nA.
Low input offset current.
30nA.
±4.5V to ±18V supplies.
Three-State TTL compatible output.
No supply cur.
