EL4450C Datasheet, Multiplier, Elantec Semiconductor

EL4450C Features

  • Multiplier
  • Complete four-quadrant multiplier with output amp
      –requires no extra components
  • Good linearity of 0.3%
  • 90 MHz bandwidth for both X and Y inp

PDF File Details

Part number:

EL4450C

Manufacturer:

Elantec Semiconductor

File Size:

266.29kb

Download:

📄 Datasheet

Description:

Wideband four-quadrant multiplier. The EL4450C is a complete four-quadrant multiplier circuit. It offers wide bandwidth and good linearity while including a powerful ou

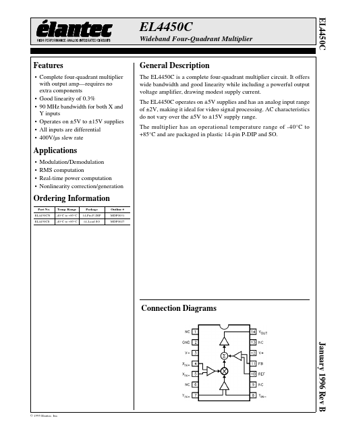

Datasheet Preview: EL4450C 📥 Download PDF (266.29kb)
Page 2 of EL4450C Page 3 of EL4450C

EL4450C Application

  • Applications
  • Modulation/Demodulation RMS computation Real-time power computation Nonlinearity correction/gen
