EL5192C, EL5 600MHz Current Feedback Amplifier

EL5192C Description

EL5192C EL5192C 600MHz Current Feedback Amplifier .
The EL5192C is a current feedback amplifier with a very high bandwidth of 600MHz.

EL5192C Features

* 600MHz -3dB bandwidth
* 6mA supply current
* Single and dual supply operation, from 5V to 10V supply span
* Available in 5-pin SOT23 package
* Dual (EL5292C) and triple (EL5392C) available
* High speed, 1GHz product available (EL5191C)
* Low

EL5192C Applications

* With a supply current of just 6mA and the ability to run from a single supply voltage from 5V to 10V, the EL5192C is also ideal for hand held, portable or battery-powered equipment. For applications where board space is critical, the EL5192C is offered in the 5-pin SOT23 package, as well as an indu

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: EL5192C, EL5. Please refer to the document for exact specifications by model.

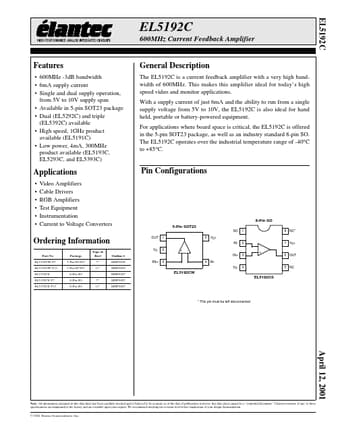

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
EL5192C, EL5
Manufacturer
Elantec Semiconductor
File Size
372.62 KB
Datasheet
EL5-192.pdf
Description
600MHz Current Feedback Amplifier
Note
This datasheet PDF includes multiple part numbers: EL5192C, EL5.
Please refer to the document for exact specifications by model.
