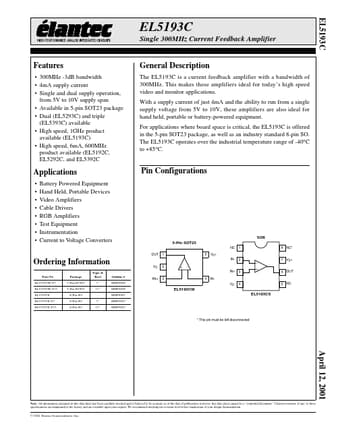

EL5193C Datasheet, Amplifier, Elantec Semiconductor

EL5193C Features

• Amplifier
• 300MHz -3dB bandwidth
• 4mA supply current
• Single and dual supply operation, from 5V to 10V supply span
• Available in 5-pin SOT23 package

PDF File Details

Part number:

EL5193C

Manufacturer:

Elantec Semiconductor

File Size:

368.54kb

Download:

📄 Datasheet

Description:

Single 300mhz current feedback amplifier. The EL5193C is a current feedback amplifier with a bandwidth of 300MHz. This makes these amplifiers ideal for today’s high speed vide

EL5193C Application

• Applications With a supply current of just 4mA and the ability to run from a single supply voltage from 5V to 10V, these amplifiers are also ideal

TAGS

EL5193C

Elantec Semiconductor
