EL2073C Datasheet, Amplifier, Elantec

EL2073C Features

  • Amplifier
  • 200MHz gain-bandwidth product
  • Unity-gain stable
  • Ultra low video distortion = 0.01%/0.015° @ NTSC/PAL
  • Conventional voltage-feedback topology

PDF File Details

Part number:

EL2073C

Manufacturer:

Elantec

File Size:

368.66kb

Download:

📄 Datasheet

Description:

200mhz unity-gain stable operational amplifier. The EL2073C is a precision voltage-feedback amplifier featuring a 200MHz gain-bandwidth product, fast settling time, excellent differ

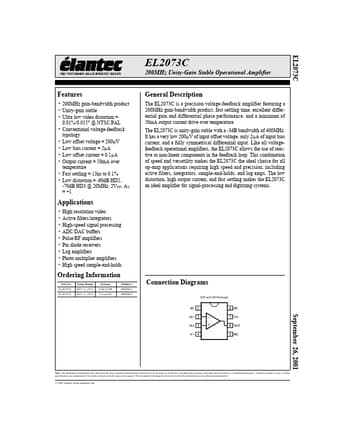

Datasheet Preview: EL2073C 📥 Download PDF (368.66kb)
Page 2 of EL2073C Page 3 of EL2073C

EL2073C Application

  • Applications requiring high speed and precision, including active filters, integrators, sample-and-holds, and log amps. The low distortion, high out
