AD22653

2-Vrms Cap-Less Line Driver

AD22653 Features

* z Operation Voltage: 3.0V to 3.6V z Cap-less Output - Eliminates Output Capacitors - Improves Low Frequency Response - Reduces POP/Clicks - Reduce Board Area and Component Cost z Low Noise and THD - SNR > 102dB - Typical Vn < 12uVrms - THD+N < 0.02% z Maximum Output Voltage Swing into 10kΩ Load - 2V

AD22653 General Description

The AD22653 is a 2-Vrms cap-less stereo line driver. The device is ideal for single supply electronics. Cap-less design can eliminate output dc-blocking capacitors for better low frequency response and save cost. The AD22653 is capable of delivering 2-Vrms output into a 10kΩ load with 3.3V supply. T.

AD22653 Datasheet (661.27 KB)

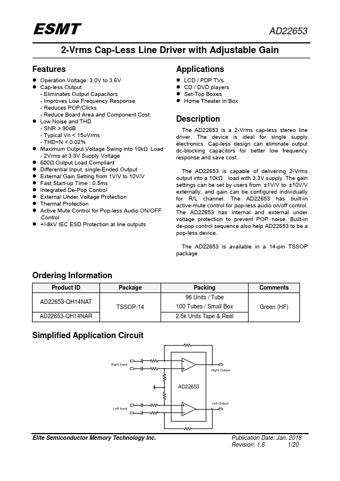

Preview of AD22653 PDF

Datasheet Details

Part number:

AD22653

Manufacturer:

Elite Semiconductor

File Size:

661.27 KB

Description:

2-vrms cap-less line driver.
