AD22657B Datasheet - ESMT

AD22657B 2-Vrms Cap-Less Line Driver

The AD22657B is a 2-Vrms cap-less stereo line driver. The device is ideal for single supply electronics. Cap-less design can eliminate output dc-blocking capacitors for better low frequency response and save cost. The AD22657B is capable of delivering 2-Vrms output into a .

AD22657B Features

* Operation Voltage: 3V to 3.6V

* Cap-less Output - Eliminates Output Capacitors - Improves Low Frequency Response - Reduces POP/Clicks

* Low Noise and THD - Typical SNR 107dB - Typical Vn 7uVrms - Typical THD+N < 0.02%

* Maximum Output Voltage Swing into 2.5k Load - 2Vrms at 3.3V Su

AD22657B-ESMT.pdf

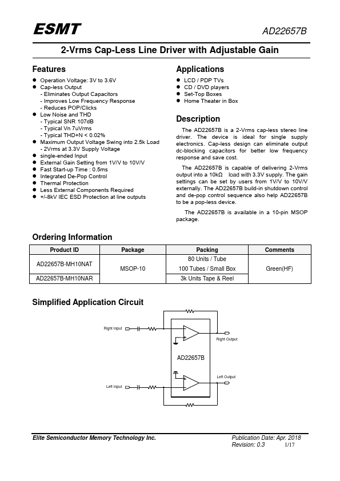

Preview of AD22657B PDF
AD22657B Datasheet Preview Page 2 AD22657B Datasheet Preview Page 3

Datasheet Details

Part number:

AD22657B

Manufacturer:

ESMT

File Size:

616.89 KB

Description:

2-vrms cap-less line driver.
