AD82581B - 12W Stereo/Mono Digital Audio Amplifier

Datasheet Summary

Description

This is a stereo (8Ω)/mono (4Ω) fully digital audio amplifier with output power which can drive up to 2x12W for stereo or 1x24W for mono at 24V supply voltage, no external heat-sink or fan is requirement.

Features

  • Preliminary AD82581B 12W Stereo/Mono Digital Audio Amplifier z 16/18/20/24-bit input with I2S, Left-alignment and Right-alignment data format z PSNR & DR(A-weighting) Loudspeaker: 98dB (PSNR), 106dB (DR) @24V z Multiple sampling frequencies (Fs) 32kHz / 44.1kHz / 48kHz and 64kHz / 88.2kHz / 96kHz and 128kHz/176.4kHz/192kHz z System clock = 64x, 128x, 256x, 384x, 512x, 768x, 1024x Fs 256x~1024x Fs for 32kHz / 44.1kHz / 48kHz 128x~512x Fs for 64kHz / 88.2kHz / 96kHz 64x~256x Fs for 128kHz/176.4.

📥 Download Datasheet

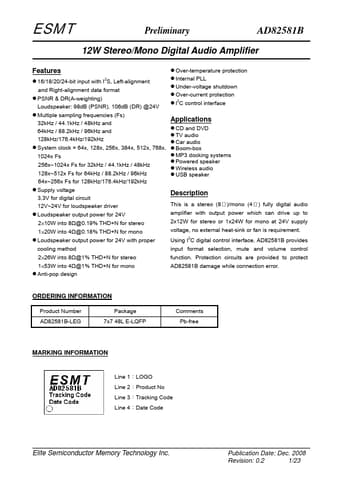

Datasheet preview – AD82581B

Datasheet Details

Part number AD82581B
Manufacturer Elite Semiconductor
File Size 189.38 KB
Description 12W Stereo/Mono Digital Audio Amplifier
Datasheet download datasheet AD82581B Datasheet
Additional preview pages of the AD82581B datasheet.

📁 Similar Datasheet

  • AD82581 - 2x15W Stereo / 1x30W Mono Digital Audio Amplifier (ESMT)
  • AD82583 - 2 x 20W Stereo / 1 x 40W Mono Class-D Audio Amplifier (ESMT)
  • AD82584D - 2 x 25W Stereo / 1 x 50W Mono Digital Audio Amplifier (ESMT)
  • AD82584F - Mono Digital Audio Amplifier (ESMT)
  • AD82589 - 2 x 20W Stereo / 1 x 40W Mono Digital Audio Amplifier (ESMT)
  • AD8258A - Stereo/Mono Digital Audio Amplifier (Elite Semiconductor Memory Technology)
  • AD825 - Low Cost/ General Purpose High Speed JFET Amplifier (Analog Devices)
  • AD8250 - programmable instrumentation amplifier (Analog Devices)
  • AD8251 - Programmable Gain Instrumentation Amplifier (Analog Devices)
  • AD8253 - Programmable Gain Instrumentation Amplifier (Analog Devices)
Other Datasheets by Elite Semiconductor
  • AD82584 - 2x20W Stereo / 1x 40W Mono Digital Audio Amplifier
  • AD82585 - 2 x 20W Stereo Digital Audio Amplifier
  • AD82586 - 2 x 15W Stereo / 1 x 30W Mono Digital Audio Amplifier
  • AD82586B - 2x20W Stereo / 1x 40W Mono Digital Audio Amplifier
  • AD82586C - 2 x 20W Stereo / 1 x 40W Mono Digital Audio Amplifier
  • AD82587 - Mono Digital Audio Amplifier
  • AD82587D - 2 x 20W Stereo / 1 x 40W Mono Digital Audio Amplifier
  • AD82588 - 2x15W Stereo / 1x 30W Mono Digital Audio Amplifier

Full PDF Text Transcription

Click to expand full text
ESMT Features Preliminary AD82581B 12W Stereo/Mono Digital Audio Amplifier z 16/18/20/24-bit input with I2S, Left-alignment and Right-alignment data format z PSNR & DR(A-weighting) Loudspeaker: 98dB (PSNR), 106dB (DR) @24V z Multiple sampling frequencies (Fs) 32kHz / 44.1kHz / 48kHz and 64kHz / 88.2kHz / 96kHz and 128kHz/176.4kHz/192kHz z System clock = 64x, 128x, 256x, 384x, 512x, 768x, 1024x Fs 256x~1024x Fs for 32kHz / 44.1kHz / 48kHz 128x~512x Fs for 64kHz / 88.2kHz / 96kHz 64x~256x Fs for 128kHz/176.4kHz/192kHz z Supply voltage 3.3V for digital circuit 12V~24V for loudspeaker driver z Loudspeaker output power for 24V 2×10W into 8Ω@0.19% THD+N for stereo 1×20W into 4Ω@0.
