AD82585 Datasheet PDF - Elite Semiconductor 2 x 20W Stereo Digital Audio Amplifier Specs

AD82585 - 2 x 20W Stereo Digital Audio Amplifier

Datasheet Summary

Description

AD82585 is a digital audio amplifier capable of driving a pair of 8Ω, 20W speaker which operate with play music at a 24V supply without external heat-sink or fan requirement.

Features

16/18/20/24-bit input with I2S, Left-alignment and Right-alignment data format.
PSNR & DR(A-weighting) Loudspeaker: 94dB (PSNR), 106dB (DR) @24V.
Multiple sampling frequencies (Fs) 32kHz / 44.1kHz / 48kHz and 64kHz / 88.2kHz / 96kHz and 128kHz/176.4kHz/192kHz.
System clock = 64x, 128x, 256x, 384x, 512x, 768x, 1024x Fs 256x~1024x Fs for 32kHz / 44.1kHz / 48kHz 128x~512x Fs for 64kHz / 88.2kHz / 96kHz 64x~256x Fs for 128kHz/176.4kHz/192kHz.
Supply voltage 3.3V for digital.

Datasheet Details

Part number	AD82585
Manufacturer	Elite Semiconductor
File Size	639.15 KB
Description	2 x 20W Stereo Digital Audio Amplifier
Datasheet	AD82585 Datasheet

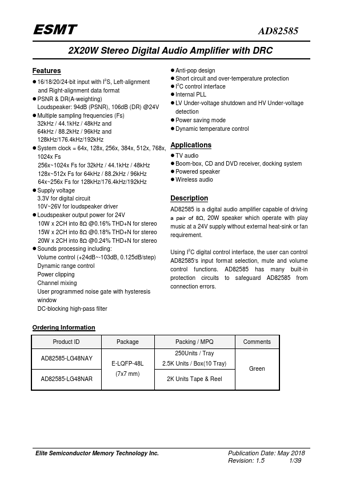

Additional preview pages of the AD82585 datasheet.

📁 Similar Datasheet

AD82581 - 2x15W Stereo / 1x30W Mono Digital Audio Amplifier (ESMT)

AD82583 - 2 x 20W Stereo / 1 x 40W Mono Class-D Audio Amplifier (ESMT)

AD82584D - 2 x 25W Stereo / 1 x 50W Mono Digital Audio Amplifier (ESMT)

AD82584F - Mono Digital Audio Amplifier (ESMT)

AD82589 - 2 x 20W Stereo / 1 x 40W Mono Digital Audio Amplifier (ESMT)

AD8258A - Stereo/Mono Digital Audio Amplifier (Elite Semiconductor Memory Technology)

AD825 - Low Cost/ General Purpose High Speed JFET Amplifier (Analog Devices)

AD8250 - programmable instrumentation amplifier (Analog Devices)

AD8251 - Programmable Gain Instrumentation Amplifier (Analog Devices)

AD8253 - Programmable Gain Instrumentation Amplifier (Analog Devices)

Full PDF Text Transcription

Click to expand full text

ESMT/EMP Features  16/18/20/24-bit input with I2S, Left-alignment and Right-alignment data format  PSNR & DR(A-weighting) Loudspeaker: 94dB (PSNR), 106dB (DR) @24V  Multiple sampling frequencies (Fs) 32kHz / 44.1kHz / 48kHz and 64kHz / 88.2kHz / 96kHz and 128kHz/176.4kHz/192kHz  System clock = 64x, 128x, 256x, 384x, 512x, 768x, 1024x Fs 256x~1024x Fs for 32kHz / 44.1kHz / 48kHz 128x~512x Fs for 64kHz / 88.2kHz / 96kHz 64x~256x Fs for 128kHz/176.4kHz/192kHz  Supply voltage 3.3V for digital circuit 10V~26V for loudspeaker driver  Loudspeaker output power for 24V 10W x 2CH into 8Ω @0.16% THD+N for stereo 15W x 2CH into 8Ω @0.18% THD+N for stereo 20W x 2CH into 8Ω @0.24% THD+N for stereo  Sounds processing including: Volume control (+24dB~-103dB, 0.
