C3198 - NPN Epitaxial Silicon Transistor

Datasheet Summary

Features

  • Collector-Emitter Voltage: VCEO=50V Collector Dissipation: PC(max)=625mW TO-92 Absolute Maximum Ratings (TA=25oC) Characteristic Symbol Rating Unit Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Dissipation Junction Temperature Storage Temperature VCBO VCEO VEBO IC PC TJ TSTG 60 50 5 150 625 150 -55~+150 V V V mA mW oC oC 1. Emitter 2. Collector 3. Base Electrical Characteristics (TA=25oC) Characteristic Symbol Test Conditions Coll.

📥 Download Datasheet

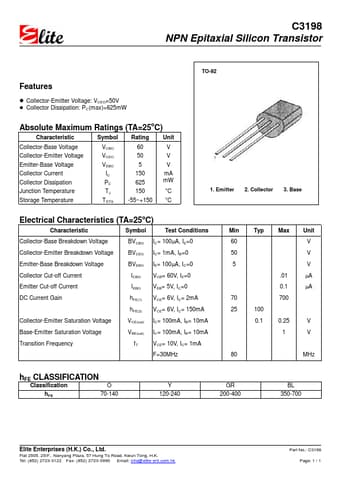

Datasheet preview – C3198

Datasheet Details

Part number C3198
Manufacturer Elite
File Size 45.33 KB
Description NPN Epitaxial Silicon Transistor
Datasheet download datasheet C3198 Datasheet
