M11B11664A

64 K x 16 DRAM

M11B11664A Datasheet (336.11 KB)

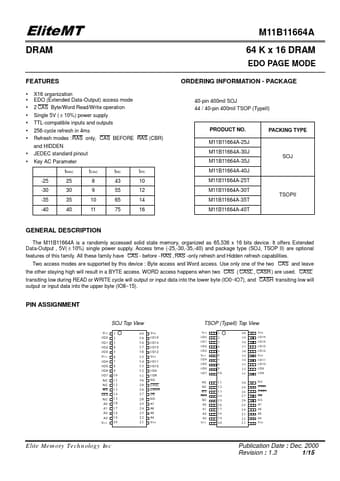

Preview of M11B11664A PDF Datasheet

Datasheet Details

Part number:

M11B11664A

Manufacturer:

EliteMT

File Size:

336.11 KB

Description:

64 k x 16 dram

M11B11664A Features

* y X16 organization y EDO (Extended Data-Output) access mode y 2 CAS Byte/Word Read/Write operation y Single 5V ( ± 10%) power supply y TTL-compatible inputs and outputs y 256-cycle refresh in 4ms y Refresh modes : RAS only, CAS BEFORE RAS (CBR) and HIDDEN y JEDEC standard pinout y Key AC Parameter

M11B11664A General Description

The M11B11664A is a randomly accessed solid state memory, organized as 65,536 x 16 bits device. It offers Extended Data-Output , 5V( ± 10%) single power supply. Access time (-25,-30,-35,-40) and package type (SOJ, TSOP II) are optional features of this family. All these family have CAS - before - RA.
