EDD10161BBH-TS 1G bits DDR Mobile RAM

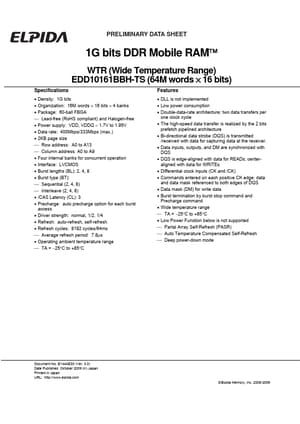

PRELIMINARY DATA SHEET 1G bits DDR Mobile RAM WTR (Wide Temperature Range) EDD10161BBH-TS (64M words × 16 bits) Specifications Density: 1G bits Organization: 16M words × 16 bits × 4 banks Package: 60-ball FBGA  Lead-free (RoHS compliant) and Halogen-free Power supply: VDD, VDDQ = 1.7V to 1.95V Data rate: 400Mbps/333Mbps (max.) 2KB page size  Row address: A0 to A13  Column address: A0 to A9 Four internal banks for concur.

EDD10161BBH-TS Features

* DLL is not implemented

* Low power consumption

* Double-data-rate archi
