EDD10321BBH-TS 1G bits DDR Mobile RAM

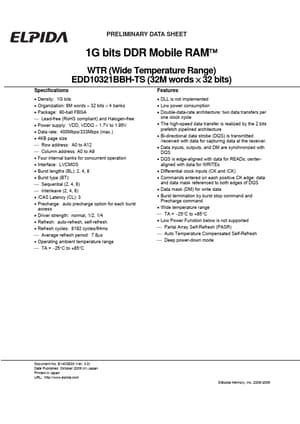

PRELIMINARY DATA SHEET 1G bits DDR Mobile RAM WTR (Wide Temperature Range) EDD10321BBH-TS (32M words × 32 bits) Specifications Density: 1G bits Organization: 8M words × 32 bits × 4 banks Package: 90-ball FBGA  Lead-free (RoHS compliant) and Halogen-free Power supply: VDD, VDDQ = 1.7V to 1.95V Data rate: 400Mbps/333Mbps (max.) 4KB page size  Row address: A0 to A12  Column address: A0 to A9 Four internal banks for concurr.

EDD10321BBH-TS Features

* DLL is not implemented

* Low power consumption

* Double-data-rate archit
